ALIPLAST GENESIS 75
Описание

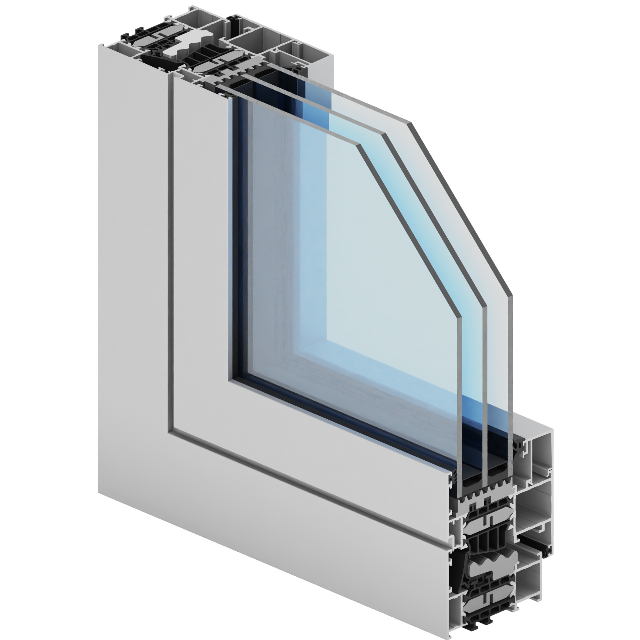

Aliplast is one of the leading companies on the European market in the development, marketing and distribution of high-quality aluminum systems for windows, doors, sliding elements, curtain walls, roofing systems. Aliplast is a member of the internationally renowned Corialis Group, established in 1984 with headquarters in Lokeren, Belgium. The Genesis 75 system is a modern aluminum system for designing windows and doors with very good thermal insulation. It is intended for the production of structures in buildings with public access, as well as single-family and multi-storey residential buildings. The system has many options to meet all the design and functionality requirements of the customer, such as the production of structures with hidden sashes, outward-opening windows and a wide range of different finishes for the sashes and frames. It is an excellent solution for your home or business building.
Предимства
25-year factory warranty on the paint.
Significant energy savings thanks to thermal insulation characteristics.
Increased levels of security, comfort and convenience.
High quality and long life of the profile.
A wide variety of designs and solutions according to your personal needs.
Wide range of colors – RAL palette, texture colors, wood colors, colors imitating stone surfaces, anodized color and two-tone.
Certified features.
Техническа характеристика
FRAME DIMENSIONS
75mm
SASH DIMENSIONS
84mm
GLAZING THICKNESS
From 20 mm to 59 mm
SEALING
Central EPDM seal + additional thermal seal
HEAT TRANSFER COEFFICIENT
Uf = 1,35 W/m2K
WATER TIGHTNESS
Class E1800 (1800Pa)/E1950*(E1950 Pa); EN 12208
WINDLOAD RESISTANCE
Class E2400 (2400 Pa);EN 12210
AIR PERMEABILITY
Class 4; EN 12207
ACOUSTIC
45 (-1,-3) dB
Галерия
